Product introduction
Item name:Tungsten alloy bar /rodMaterial:W-Ni-Fe, W-Ni-Cu
Standard:AMS-T-21014
Packaging:Plywood wood case
Application:Industry
Brand name:XIAMET
Place Of origin:China
Inquiry us:sales@sxxinheng.com

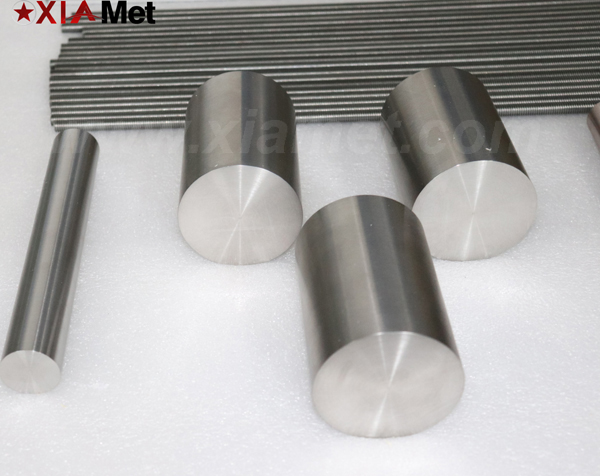

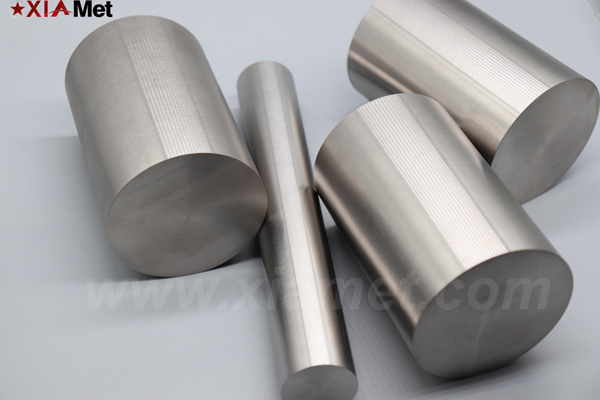

Tungsten Alloy Rod
1, Diameter: 3.0-400.0mm
2, Length: 30-1000mm
3, Density: 15.8-18.75 g/cm3
4, Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
5, Surface: Sintering surface, Forged surface, Ground surface
It is produced by pressing and sintering into billets, which are worked by rolling or swaging into rod. Smaller sizes are produced by subsequent drawing. Tungsten rod is produced in straight random lengths with a smooth swaged surface at diameters 3mm and larger, and with a smooth drawn finish below 3mm. A center less-ground finish can also be furnished. Specific lengths and special fabrications can be supplied upon request.
Specifications
|
Type |
Diameter |
Dia. tolerance |
Length |
L tolerance |
Liner rate |
|
Sintering Rod |
Φ40-100 |
±3 |
<500 |
±5 |
±5% |
|
Forged Rod |
Φ20-80 |
±2 |
<800 |
±5 |
±2% |
|
Ground Rod |
Φ2-60 |
±0.1 |
<650 |
±1 |
±0.5% |
|
Type |
Density (g/cm³) |
Tensile strength (MPa) |
Elongation |
Hardness (HRC) |
|
85W-10.5Ni-4.5Fe |
15.8-16.0 |
700-1000 |
20-33 |
20-30 |
|
90W-7NI-3FE |
16.9-17.1 |
700-1000 |
20-33 |
24-32 |
|
90W-6Ni-个4Fe |
16.7-17.0 |
700-1000 |
20-33 |
24-32 |
|
91W-6Ni-3FE |
17.1-17.3 |
700-1000 |
15-28 |
25-30 |
|
92W-5Ni-3FE |
17.3-17.5 |
700-1000 |
18-28 |
25-30 |
|
92.5W-5Ni-2.5Fe |
17.4-17.6 |
700-1000 |
25-30 |
25-30 |
|
93W-4 NI-3FE |
17.5-17.6 |
700-1000 |
15-25 |
26-30 |
|
93W-4.9Ni-2.1Fe |
17.5-17.6 |
700-1000 |
15-25 |
26-30 |
|
93W-5Ni-的2Fe |
17.5-17.6 |
700-1000 |
15-25 |
26-30 |
|
95W-3Ni-的2Fe |
17.9-18.1 |
700-900 |
8-15 |
25-35 |
|
95W-3.5Ni-1.5Fe |
17.9-18.1 |
700-900 |
8-15 |
25-35 |
|
96W-3Ni-1FE |
18.2-18.3 |
600-800 |
6-10 |
30-35 |
|
97W-2Ni-1FE |
18.4-18.5 |
600-800 |
8-14 |
30-35 |
|
98W-1Ni-1FE |
18.4-18.6 |
500-800 |
5-10 |
30-35 |
|
90W-6Ni-4CU |
17.0-17.2 |
600-800 |
4-8 |
25-35 |
|
93W-5Ni-2CU |
17.5-17.6 |
500-600 |
3-5 |
25-35 |
