Product introduction

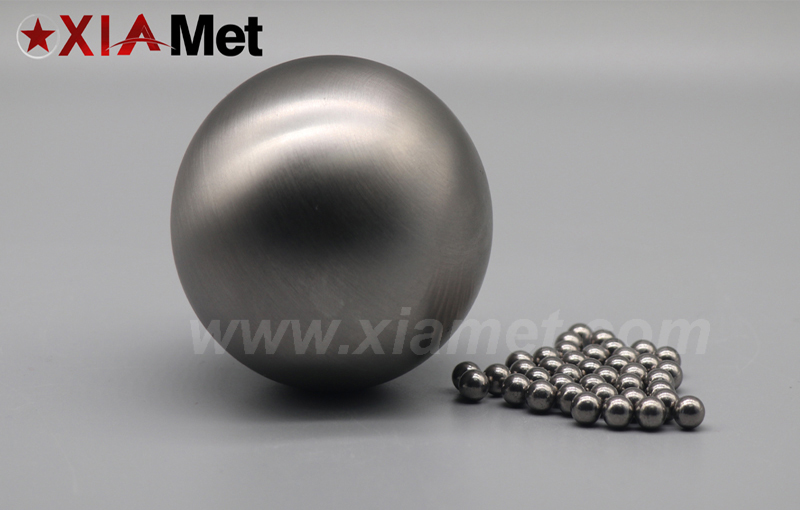

Item name:tss shot
Material:tungsten alloy
Standard:ASM-T-21014
Packaging:plywood case
Application:shotgun shells,hunting
Brand name:XIAMET
Place Of origin:China
Inquiry us:sales@sxxinheng.com

Product details

Tungsten alloy shot is used as the shot for shotgun hunting shells. The pellets spread upon leaving the barrel, and the power of the burning charge is divided among the pellets, which means that the energy of any one ball of shot is fairly low. In a hunting context, the product makes shotguns useful primarily for hunting birds and other small games.

Material & Property

Material	Density ( g/cm3 )	Tensile Strength ( Mpa)	Elongation ( % )	HRC
85W-1.5Ni-4.5Fe	15.8-16.0	700-1000	20-33	20-30
90W-7Ni-3Fe	16.9-17.1			24-32
90W-6Ni-4Fe	16.7-17.0			24-32
91W-6Ni-3e	17.1-17.3		25-28	25-30
92W-5Ni-3Fe	17.3-17.5		18-28
92.5W-5Ni-2.5Fe	17.4-17.6		25-30
93W-4Ni-3Fe	17.5-17.6		15-25	26-30
93W-4.9Ni-2.1Fe
93W-4.9Ni-2.1Fe
93W-5Ni-2Fe	17.9-18.1	700-900	8-15	25-35
95W-3.5Ni-1.5Fe	17.9-18.1	700-900	8-15	25-35
96W-3Ni-1Fe	18.2-18.3	600-800	6-10	30-35
97W-2Ni-1Fe	18.4-18.5	600-800	8-14
98W-1Ni-1Fe	18.4-18.6	500-800	5-10
90W-6Ni-4Cu	17.0-17.2	600-800	4-8	25-35
93W-5Ni-2Cu	17.5-17.6	500-600	3-5	25-35

Feature

• High density

• High melting point

• Small volume

• Excellent hardness

• Super wearing resistance

• High ultimate tensile strength
