Product introduction

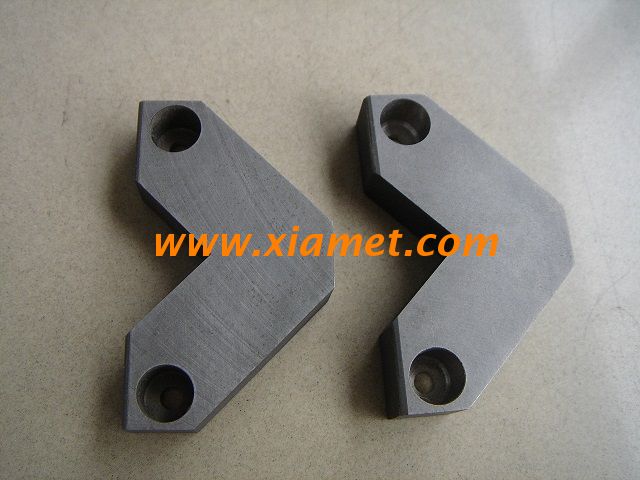

Item name:molybdenum part
Material:99.95%Mo
Standard:GB/T 17792-1999
Packaging:plywood wood case
Application:heater
Brand name:XIAMET
Place Of origin:China
Inquiry us:sales@sxxinheng.com

Product details

1.Grade:Mo1 Mo2

2.Purity :Mo > =99.95%

3. Characteristic:

Melting Point: 2610 Degrees Celsius

Boiling Point: 5560Degrees Celsius

Density: 10.2g/cm3

High quality, workability

4. Certificate: ISO9002

5. Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion.

6. Dimensions and tolerance(According to clients’ requirements):

Molybdenum Plate [mm]
thickness	tol	width	tol	length	tol	quality	flatness in %
1.000	+/- 0.200	500.0	+/- 1.20	1000	+5/-0	hot rolled, pickled	20
1.500	+/- 0.250	500.0	+/- 1.70	1000	+5/-0	hot rolled, pickled	20
2.000	+/- 0.250	500.0	+/- 1.70	1000	+5/-0	hot rolled, pickled	25
3.000	+/- 0.300	300.0	+/- 1.70	800	+5/-0	hot rolled, pickled	25
4.000	+/- 0.200	200.0	+/- 1.70	600	+5/-0	hot rolled, pickled	25
5.000	+/- 0.200	200.0	+/- 1.70	550	+5/-0	hot rolled, pickled	25

Thickness (mm)	Thickness Tolerance	Width (mm)	Width Tolerance	Length (mm)	Length Tolerance
2.01~3.00	±0.08	≤400	±3	≤1000	±5
3.01~4.00	±0.10	≤400	±3	≤1000	±5

7. Application:

used as the steel-making additive

for producing molybdenum targets

for producing ion implantation parts

for rolling molybdenum foil and punching molybdenum discs

for producing Mo-boats, and heating elements in high temperature furnaces

for producing electric light source parts and electric vacuum components

8.Manufacturer: All can be produced as the requirements of customers. We are manufacturer,welcome to our factory!
