Product introduction

Item name:Pure Tungsten Sheet
Material:99.95%Tungsten
Standard:GB/T 4187-1984
Packaging:Plywood wooden case
Application:high temperature furnaces...
Brand name:XIAMET
Place Of origin:China
Inquiry us:sales@sxxinheng.com

Product details

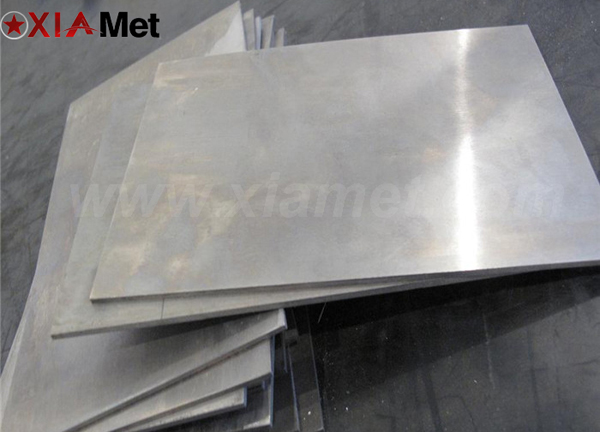

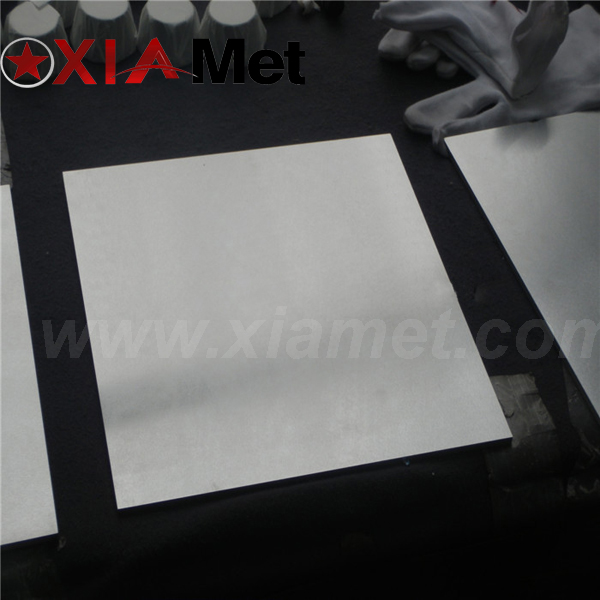

Tungsten Plate Tunsgten Sheet

1. Grade:W1 W2

2. Purity :W1 > =99.95% W2 > =99.92%

3. Characteristic:

Melting Point: 3410 ℃

Boiling Point: 5927 ℃

Density: 19.3g/cm3

High quality, workability

4. Certificate: ISO9002

5. Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion.

6. Dimensions and tolerance（According to clients’ requirements）:

Tungsten Plate [mm]
thickness	tol	width	tol	length	tol	quality	flatness in %
1.000	+/- 0.200	500.0	+/- 1.20	1000	+5/-0	hot rolled, pickled	20
1.500	+/- 0.250	500.0	+/- 1.70	1000	+5/-0	hot rolled, pickled	20
2.000	+/- 0.250	500.0	+/- 1.70	1000	+5/-0	hot rolled, pickled	25
3.000	+/- 0.300	300.0	+/- 1.70	800	+5/-0	hot rolled, pickled	25
4.000	+/- 0.200	200.0	+/- 1.70	600	+5/-0	hot rolled, pickled	25
5.000	+/- 0.200	200.0	+/- 1.70	550	+5/-0	hot rolled, pickled	25

7. Application:

1).for producing tungsten targets

2).for producing ion implantation parts

3).for rolling tungsten foil and punching tungsten discs

4).for producing electric light source parts and electric vacuum components

5).for producing heating elements and refractors in high temperature furnaces

6).for producing W-boats, and heating units in high temperature furnaces
