Product introduction

Item name:Tungsten alloy rods
Material:WNiFe , WNiCu
Standard:ASTM-T-21014/ASTM B 777-07
Packaging:Plywood wood case
Application:Industry,Petroleum in field
Brand name:XIAMET
Place Of origin:China
Inquiry us:sales@sxxinheng.com
Product details

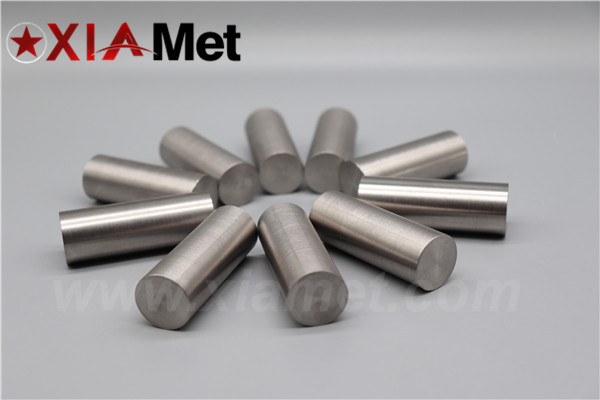

Tungsten Alloy Rod

1, Diameter: 3.0-400.0mm
2, Length: 30-1000mm
3, Density: 15.8-18.75 g/cm3
4, Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
5, Surface: Sintering surface, Forged surface, Ground surface


It is produced by pressing and sintering into billets, which are worked by rolling or swaging into rod.

Smaller sizes are produced by subsequent drawing. Tungsten rod is produced in straight random lengths with a smooth swaged

surface at diameters 3mm and larger, and with a smooth drawn finish below 3mm. A center lessground finish can also be furnished.

 Specific lengths and special fabrications can be supplied upon request.

Applications

These kinds of rods could be machined further, which are usually used to making the parts of counterweight, radiation shielding,

 military defense appliance, welding rod, extrusion die, also for some sports fields, such as darts, billets, golf club, etc. Besides,

we can manufacture and offer tungsten alloy rod as the counterpart of Anviloy 1150, whose properties are much similar.
As its high density, high melting point, small capacity, excellent hardness, superior wearing resistance, high ultimate tensile strength,

 etc, tungsten alloy rod is increasingly welcomed by public.

Specifications

Type

Diameter
(mm)

Dia. tolerance
(mm)

Length
(mm)

L tolerance
(mm)

Liner rate

Sintering Rod

Φ40-100

±3

<500

±5

±5%

Forged Rod

Φ20-80

±2

<800

±5

±2%

Ground Rod

Φ2-60

±0.1

<650

±1

±0.5%

Tungsten Alloy Data Sheet

Type

Density (g/cm³)

Tensile strength (MPa)

Elongation

Hardness (HRC)

85W-10.5Ni-4.5Fe

15.8-16.0

700-1000

20-33

20-30

90W-7Ni-3Fe

16.9-17.1

700-1000

20-33

24-32

90W-6Ni-4Fe

16.7-17.0

700-1000

20-33

24-32

91W-6Ni-3Fe

17.1-17.3

700-1000

15-28

25-30

92W-5Ni-3Fe

17.3-17.5

700-1000

18-28

25-30

92.5W-5Ni-2.5Fe

17.4-17.6

700-1000

25-30

25-30

93W-4Ni-3Fe

17.5-17.6

700-1000

15-25

26-30

93W-4.9Ni-2.1Fe

17.5-17.6

700-1000

15-25

26-30

93W-5Ni-2Fe

17.5-17.6

700-1000

15-25

26-30

95W-3Ni-2Fe

17.9-18.1

700-900

8-15

25-35

95W-3.5Ni-1.5Fe

17.9-18.1

700-900

8-15

25-35

96W-3Ni-1Fe

18.2-18.3

600-800

6-10

30-35

97W-2Ni-1Fe

18.4-18.5

600-800

8-14

30-35

98W-1Ni-1Fe

18.4-18.6

500-800

5-10

30-35

90W-6Ni-4Cu

17.0-17.2

600-800

4-8

25-35

93W-5Ni-2Cu

17.5-17.6

500-600

3-5

25-35
