Product introduction
Item name:Tungsten alloy plateMaterial:WNiFe,WNiCu
Standard:ASTM-T-21014/ASTM B 777-07
Packaging:Plywood wood case
Application:Radiation shields ,Balance
Brand name:XIAMET
Place Of origin:China
Inquiry us:sales@sxxinheng.com

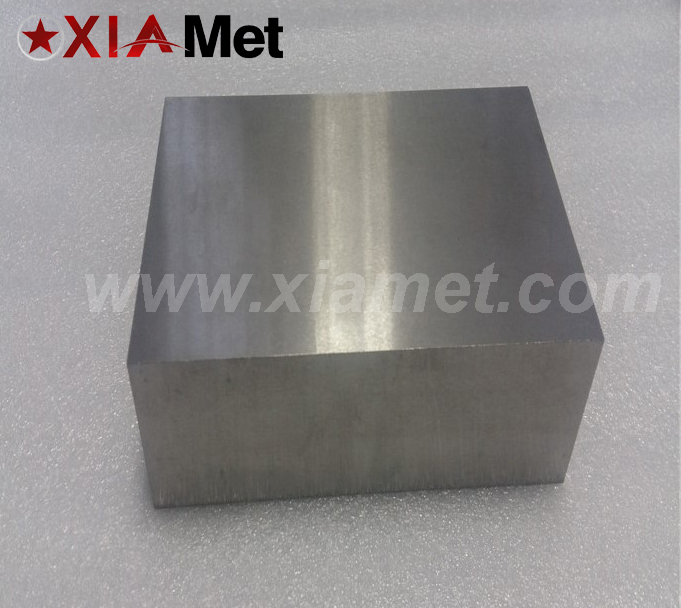

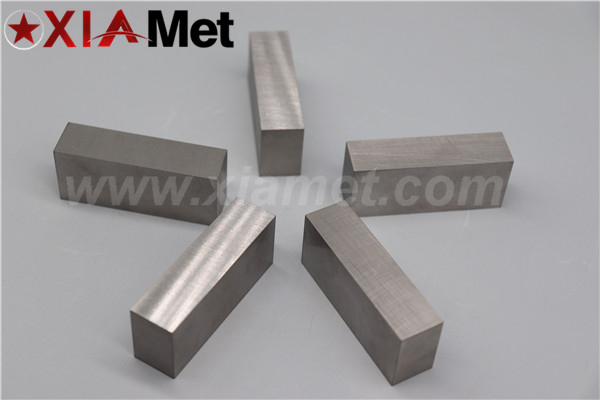

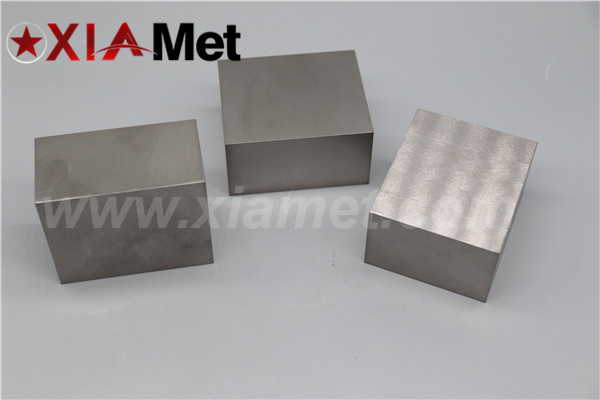

Tungsten Alloy Plate Introduction
1, width×Length: (2.0-250.0mm)×(2.0-250.0mm)
2, thickness: 2mm-15mm
3, Density: 15.8-18.75 g/cm3
4, Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
5, Surface: Sintering surface, Forged surface, Ground surface
Tungsten alloy plate is produced by good processing property billets and special cold and hot rolling technology;
they can be used to make tungsten target, tungsten heat elements, tungsten radiation shields and tungsten boats for
electronics, lightening, electro-vacuum industries.
Tungsten alloy plate play important role in manufacturing of collimator for nuclear medicine, nuclear research,
geologging and homeland security. These materials provide reliable protection against X-rays and gamma radiation.
Tungsten Alloy Data Sheet
|
Type |
Density (g/cm³) |
Tensile strength (MPa) |
Elongation |
Hardness (HRC) |
|
85W-10.5Ni-4.5Fe |
15.8-16.0 |
700-1000 |
20-33 |
20-30 |
|
90W-7Ni-3Fe |
16.9-17.1 |
700-1000 |
20-33 |
24-32 |
|
90W-6Ni-4Fe |
16.7-17.0 |
700-1000 |
20-33 |
24-32 |
|
91W-6Ni-3Fe |
17.1-17.3 |
700-1000 |
15-28 |
25-30 |
|
92W-5Ni-3Fe |
17.3-17.5 |
700-1000 |
18-28 |
25-30 |
|
92.5W-5Ni-2.5Fe |
17.4-17.6 |
700-1000 |
25-30 |
25-30 |
|
93W-4Ni-3Fe |
17.5-17.6 |
700-1000 |
15-25 |
26-30 |
|
93W-4.9Ni-2.1Fe |
17.5-17.6 |
700-1000 |
15-25 |
26-30 |
|
93W-5Ni-2Fe |
17.5-17.6 |
700-1000 |
15-25 |
26-30 |
|
95W-3Ni-2Fe |
17.9-18.1 |
700-900 |
8-15 |
25-35 |
|
95W-3.5Ni-1.5Fe |
17.9-18.1 |
700-900 |
8-15 |
25-35 |
|
96W-3Ni-1Fe |
18.2-18.3 |
600-800 |
6-10 |
30-35 |
|
97W-2Ni-1Fe |
18.4-18.5 |
600-800 |
8-14 |
30-35 |
|
98W-1Ni-1Fe |
18.4-18.6 |
500-800 |
5-10 |
30-35 |
|
90W-6Ni-4Cu |
17.0-17.2 |
600-800 |
4-8 |
25-35 |
|
93W-5Ni-2Cu |
17.5-17.6 |
500-600 |
3-5 |
25-35 |
Note: The specification and composition of tungsten alloy plate can be self-defined by customer.
