Product introduction

Item name:Tungsten cylinders
Material:W-Ni-Fe, W-Ni-Cu
Standard:ASTM-T-21014/ASTM B 777-07
Packaging:Plywood wood case
Application:Counterweights
Brand name:XIAMET
Place Of origin:China
Inquiry us:sales@sxxinheng.com
Product details

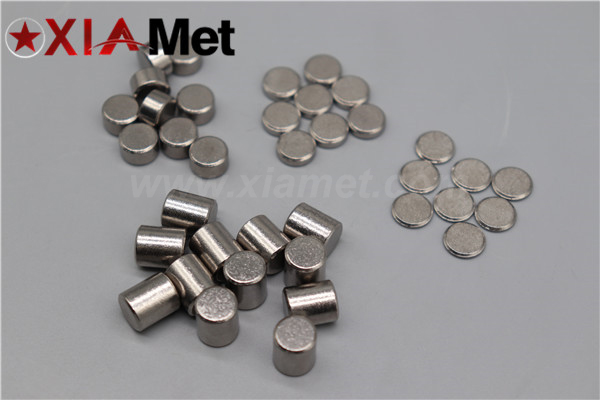

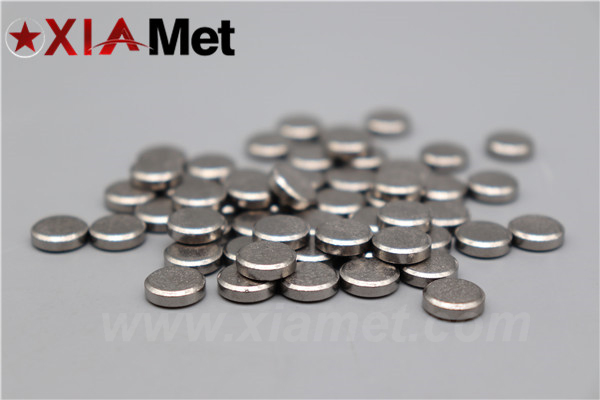

Tungsten Alloy Cylinders for balance weight

1, Diameter: 3/8 inch x Length or custom-made as per request

2, length10mm-500mm
3, Density: 15.8-18.75 g/cm3
4, Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
5, Surface: Sintering surface, Forged surface, Ground surface

Tungsten alloy cylinders are the superior product for balancing and weighting cars. Tungsten is 3.2 times heavier than no-lead weighting material often used on cars, thus it enables tremendous flexibility in the design of the car. Incremental it contain

 five 1/2 ounce cylinders, one 1/4 ounce cylinders, and two 1/8 ounce cylinders. Using the incremental cylinders, you can

achieve any weight between 0 and 3 ounces in 1/8 ounce increments.

Compared with square tungsten bar, tungsten alloy cylinder is more popular because machining and production is easier.

It is more easier to take it from the mold after press which means less damage. Moreover, it is more suitable for further machining.

Applications for Tungsten Alloy Cylinders

Tungsten alloy cylinders can be easily used for car weighting by drilling one or more 25/64" or larger diameter holes into the

block and then inserting the desired number of cylinders. The hole can then be plugged with a piece of 3/8 inch dowel rod.

The product also is manufactured as the parts of military defense, extrusion die, various counterweights, such as yacht counterweights,

vehicle counterweights, airplane counterweights, helicopter counterweights, boat counterweights, tank counterweights, etc.

Usually, tungsten alloy cylinder could be manufactured as the parts for military applications, extrusion die and counterweights,

such as yacht counterweights, vehicle counterweights, airplane counterweights, helicopter counterweights, boat counterweights,

 tank counterweights, et

Tungsten Alloy Data Sheet

Type

Density (g/cm³)

Tensile strength (MPa)

Elongation

Hardness (HRC)

85W-10.5Ni-4.5Fe

15.8-16.0

700-1000

20-33

20-30

90W-7Ni-3Fe

16.9-17.1

700-1000

20-33

24-32

90W-6Ni-4Fe

16.7-17.0

700-1000

20-33

24-32

91W-6Ni-3Fe

17.1-17.3

700-1000

15-28

25-30

92W-5Ni-3Fe

17.3-17.5

700-1000

18-28

25-30

92.5W-5Ni-2.5Fe

17.4-17.6

700-1000

25-30

25-30

93W-4Ni-3Fe

17.5-17.6

700-1000

15-25

26-30

93W-4.9Ni-2.1Fe

17.5-17.6

700-1000

15-25

26-30

93W-5Ni-2Fe

17.5-17.6

700-1000

15-25

26-30

95W-3Ni-2Fe

17.9-18.1

700-900

8-15

25-35

95W-3.5Ni-1.5Fe

17.9-18.1

700-900

8-15

25-35

96W-3Ni-1Fe

18.2-18.3

600-800

6-10

30-35

97W-2Ni-1Fe

18.4-18.5

600-800

8-14

30-35

98W-1Ni-1Fe

18.4-18.6

500-800

5-10

30-35

90W-6Ni-4Cu

17.0-17.2

600-800

4-8

25-35

93W-5Ni-2Cu

17.5-17.6

500-600

3-5

25-35

Note: The specification and composition of tungsten alloy plate can be self-defined by customer.



QQ20180731101603

20141211_170343

IMG_2029IMG_2059IMG_2060



20141211_170343


Company Information



Shaanxi Xinheng Rare Metal Co.,Ltd was established in 2001, it has been in rare metal field for more than 10 years and we provide high quality with pretty completive price,our major products including tungsten copper,tungsten nickel iron alloy ball, shot,cylinder,cube,tube,pure tungsten,molybdenum wire, plate, crucible, tube, rod, foil, sputtering target,machined parts,heating elements etc.

tungsten shot for sale reputable tungsten shot producer china tungsten shot 3.5mmtungsten shot for sale reputable tungsten shot producer china tungsten shot 3.5mmtungsten shot for sale reputable tungsten shot producer china tungsten shot 3.5mmtungsten shot for sale reputable tungsten shot producer china tungsten shot 3.5mm



Custom-made as per request are acceptable.
